Actreg Pneumatic Actuator
Actreg Pneumatic Actuator
Couldn't load pickup availability

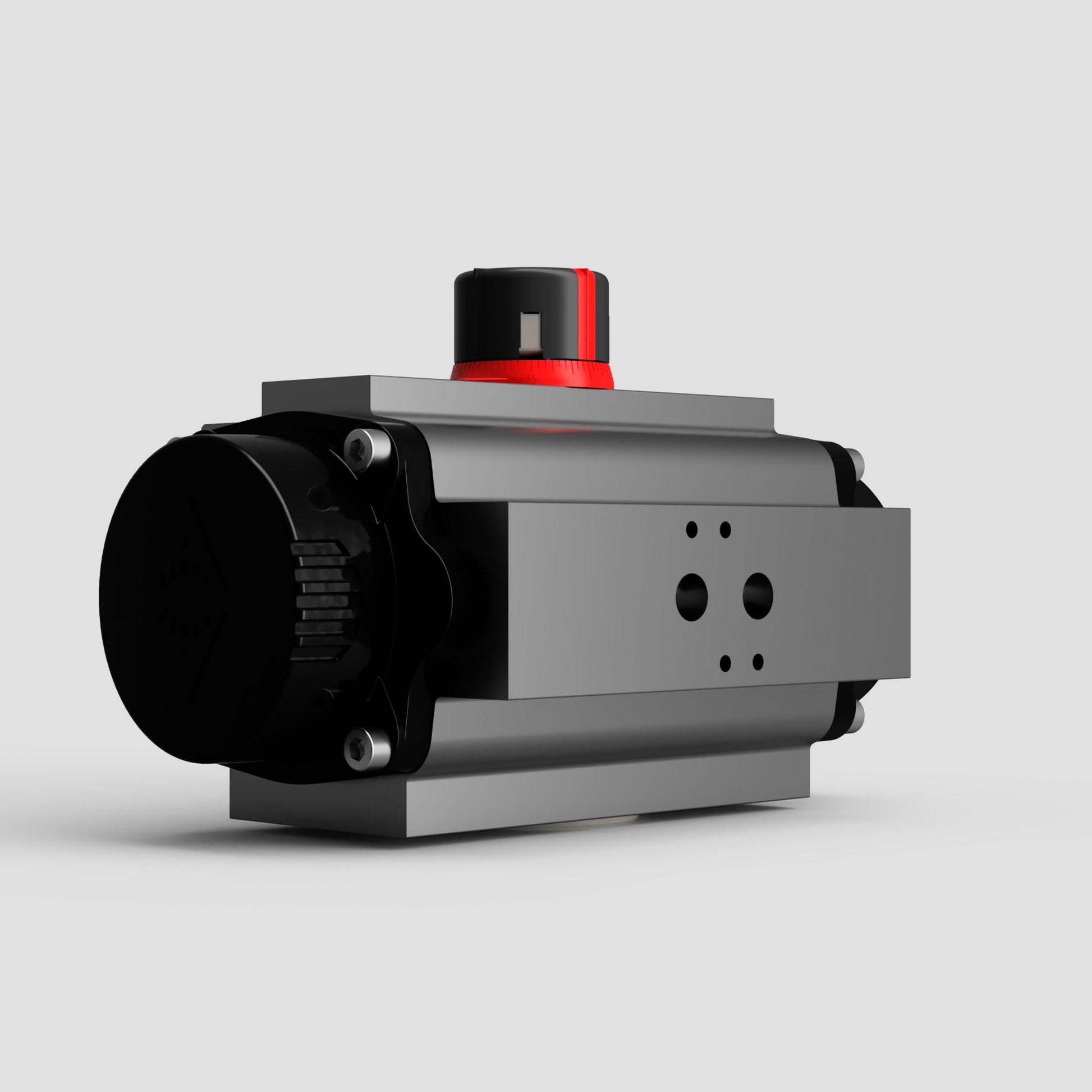

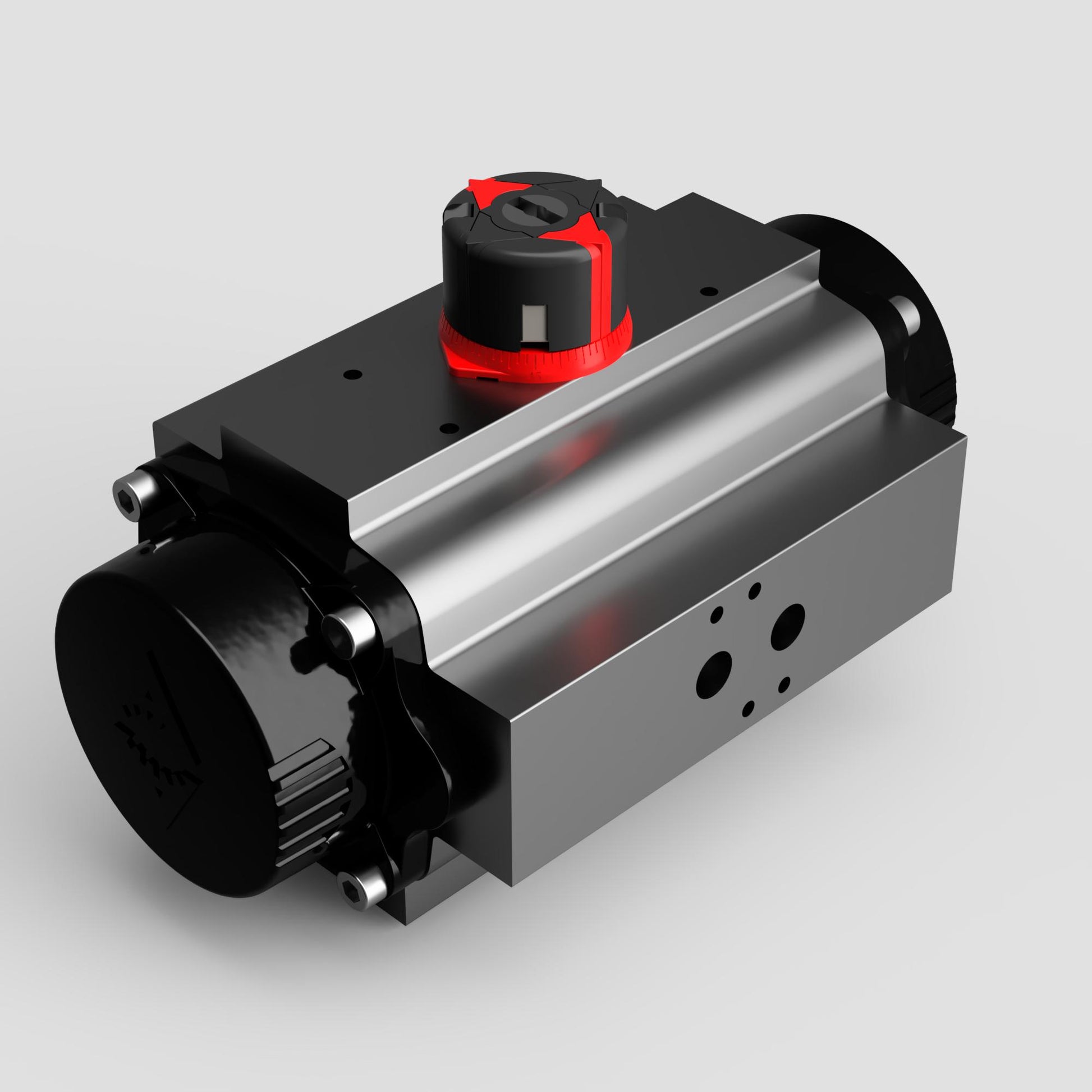

The Actreg Pneumatic Actuator is a precision-engineered rack and pinion actuator designed for reliable quarter-turn automation of valves. Built to perform in the most demanding industrial environments, it combines robust construction with high-performance control. Its compact and symmetrical design ensures consistent torque output in both double acting and spring return models.
Manufactured from corrosion-resistant materials with optional surface coatings, Actreg actuators are ideal for use in applications such as oil and gas, water treatment, chemical processing, and general industry. Compatible with ISO 5211 and Namur standards, they are designed for easy mounting of valves, solenoids, and accessories.
Key Features:
- Rack & Pinion Mechanism: Provides balanced torque throughout the 90° stroke
- Symmetrical Design: Allows for reversible mounting and uniform performance in both directions
- Modular Construction: Enables easy conversion between spring return and double acting operation
- ISO & Namur Interfaces: Ensures easy mounting to valves and control accessories
- Corrosion-Resistant Build: Available with special coatings for harsh environments
- High Cycle Life: Engineered for long-term durability and reduced maintenance
- Customisable Options: Tailored torque ranges, travel stops, and temperature ratings available
Technical Specifications:
- Actuation Type: Pneumatic – Rack and Pinion
- Rotation: 90° standard (with optional travel stops for ±5° adjustment)
- Operation: Double Acting or Spring Return
- Body Material: Extruded Aluminium (anodised or epoxy-coated)

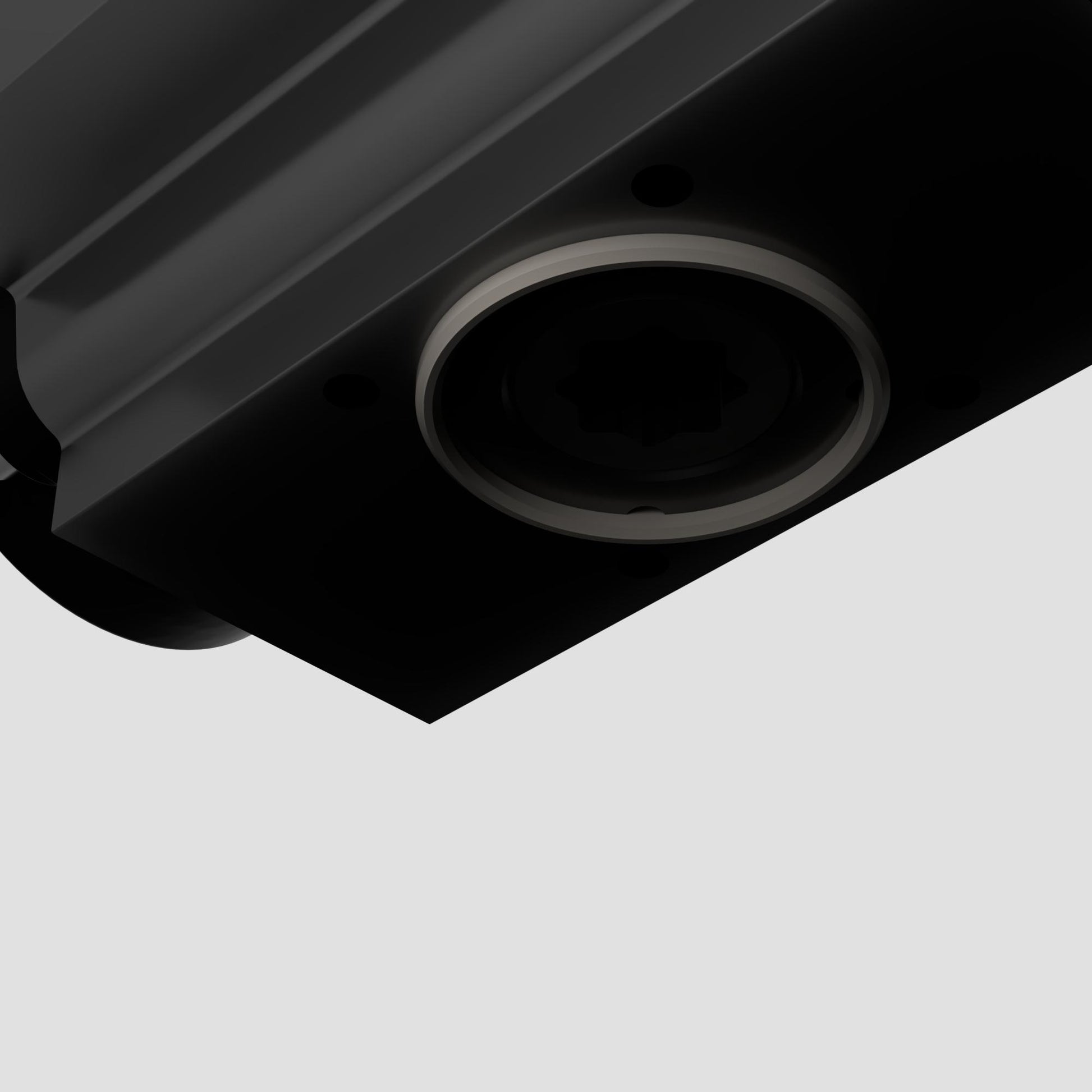

- Mounting Interface: ISO 5211

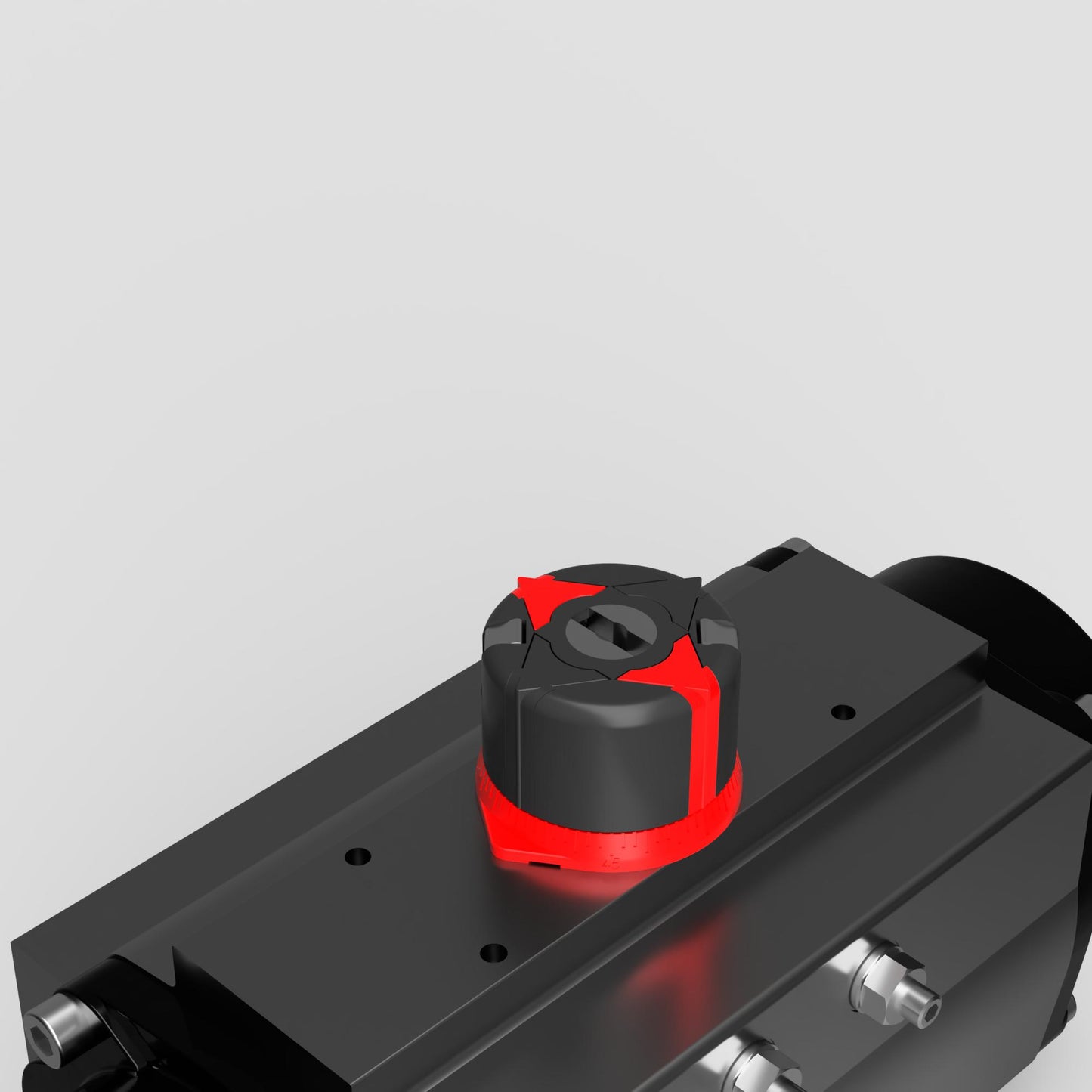

- Top Mount Interface: Namur
- Operating Pressure: 2.5 to 8 bar
- Temperature Range: -20°C to +80°C (optional high/low temp versions available)
- Applications: Oil & gas, water, chemical, HVAC, food processing
Why choose us?
-
Built to Last
Our bronze valves are engineered for long-term durability, corrosion resistance, and consistent performance across demanding applications.
-
Expert Support
We combine technical knowledge with real-world experience to help you find the right valve solution for your system — fast.
-
Fast Turnaround
With efficient stock handling and responsive service, we keep your projects moving without unnecessary delays.
FAQs
What are bronze valves used for?
Bronze valves are commonly used for isolating, regulating, and directing the flow of water, steam, air, and non-aggressive fluids in industrial, marine, and commercial systems. Their corrosion resistance makes them ideal for saltwater and outdoor applications.
Are bronze valves suitable for potable water?
Yes, bronze valves are often used in potable water systems, especially when made from lead-free or WRAS-approved bronze alloys. Always verify material compliance with local drinking water standards.
What is the difference between bronze and brass valves?
Bronze is an alloy of copper and tin, offering better corrosion and wear resistance than brass, which is typically made of copper and zinc. Bronze valves are generally more durable and preferred for marine and industrial applications.
Can bronze valves handle high temperatures and pressures?
Yes, most bronze valves are rated for moderate to high temperatures and pressures. Many models can handle up to PN25 or 600 psi, and temperatures ranging from -10°C to 150°C, depending on design and sealing materials.
Do bronze valves require regular maintenance?
Bronze valves are low-maintenance, but like any mechanical component, periodic inspection and cleaning (especially strainers and check valves) are recommended to ensure long-term performance and safety.
